USLPore® is used as an aerated lightweight concrete board for insulation purposes. It fulfills all requirements for a modern insulation material.
Environmentally-friendly manufactured it is an ideal solution to substitute organic insulation materials such as expanded polystyrene (EPS) and polyurethane (PU) or inorganic ones such as mineral wool.
True Pore Technology
Innovative technology for aeration of construction materialsfor insulation purposes and
reduction of your carbon dioxide footprint
Insulation Board

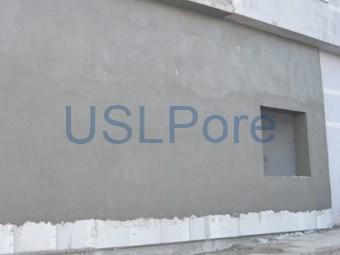

USLPore® is applied as an insulation board to subtitute expanded polystere boards as well a mineral wool within an external thermal insulation composite system.
- Thermal conductivity: 0.040 [W/mK]
- Worldwide unique low density 90-120 [kg/m³]
- Fireproofed (totally inorganic)
- Fully recyclable (ordinary construction waste)
- High steam diffusion (no mold / mildew)
Projects
USLPore® foam concrete as an insulating board can be produced at different densities. The density below is representing the average applied density of our customers for the respective application.
A higher density is resulting in a higher compressive strength but lower insulating effect.
A lower density is resulting in a lower compressive strength but better insulating effect.
All USLPore® products are fully non-combustible.
| metric | imperial | |||
| entity | value | entity | value | |
| dimension | [mm] | 600x400x100 any other possible |
[in] | 24x16x4 any other possible |
| density | [kg/m³] | 100-125 | [pcf] | 6.2-7.8 |
| thermal | [W/mK] | 0.038 - 0.045 | [R-value per in] | 3.1-3.8 |
| compression | [KPa] | 250-350 | [PSI] | 36-51 |
