Geofill

USLPore® is an ideal and costs effective construction matrial to fill unwanted voids or stabilize areas after landslides

  • No transportation, on-site production
  • Reduction of carbon dioxide footprint
  • Alternative for foam glass or aerated clay
  • Void filling ability, adjustable viscosity due to various additives
  • Fireproofed construction material
  • Fully recyclable

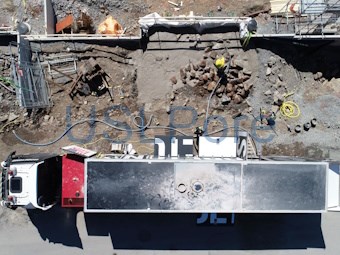

USLPore® is produced directly on-site. Therefore unwanted transportation costs to truck for example foam glass or aerated clay can be fully avoided. The viscosity of USLPore® can be adjusted due to various additives during the production process.

Typical applications are:

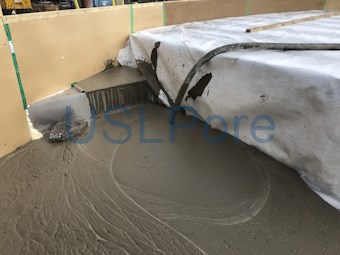

  • Filling of unwanted voids such as old pipelines or service shafts

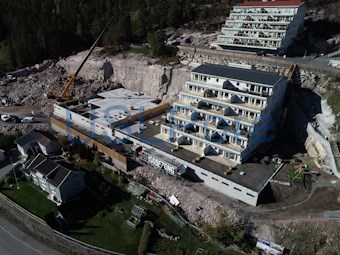

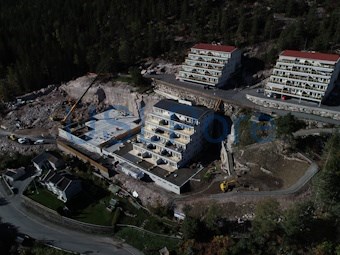

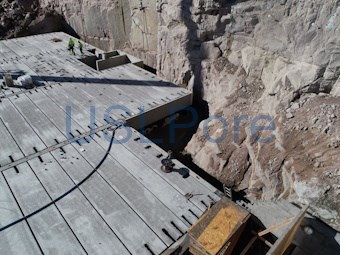

  • Stabilization in case of bridge abutments or tunneling
  • Stabilizing after landslides or in case of old mines

USLPore® is used also if diameters of larger pipelines or water supply lines have to be reduce. In a first step the new pipe with smaller diameter will be placed in the old pipe.
The empty space will than be filled with USLPore® to avoid any change of positon of the new pipe as to reduce any occurring vibrations due to the upcoming flows.

USLPore® foam concrete for Geofill can be produced at different densities. The density below is representing the average applied density of our customers for the respective application.
A higher density is resulting in a higher compressive strength but lower insulating effect.
A lower density is resulting in a lower compressive strength but better insulating effect.
All USLPore® products are fully non-combustible.

  metric imperial
entity value entity value
density [kg/m³] 200-400 [pcf] 12.5-25
thermal [W/mK] 0.06 - 0.10 [R-value per in] 1.5-2.4
compression [MPa] 0.35-1.3 [PSI] 51-187
×
< >
