True Pore Technology
Innovative technology for aeration of construction materials
for insulation purposes and
reduction of your carbon dioxide footprint

Light Gauge Steel

USLPore® can be poured at site into a light gauge steel structure covered by a shuttering system. Compared to competitors the density is remaining constant during the hardening process.

  • Time and costs saving construction method
  • Consistency of density for full wall height
  • Fireproofed construction material
  • Sustainable construction material

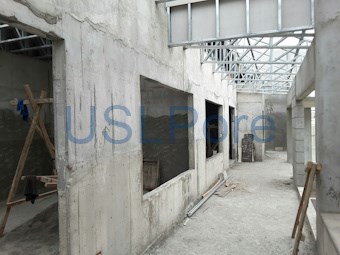

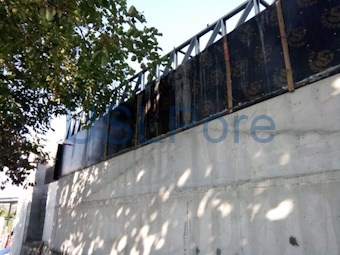

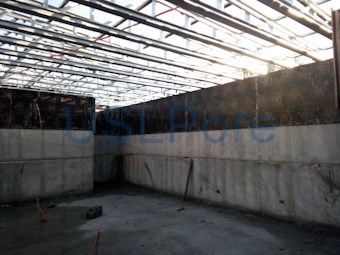

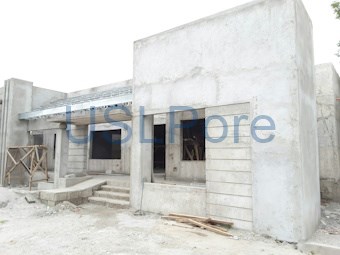

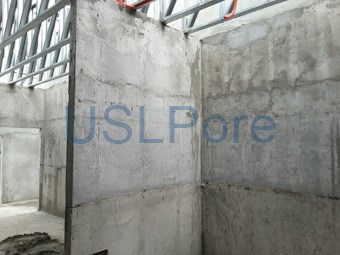

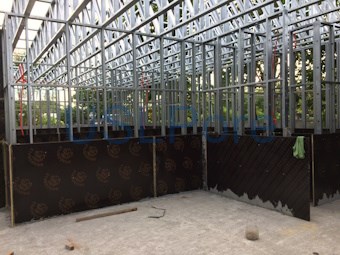

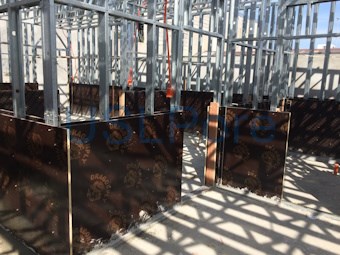

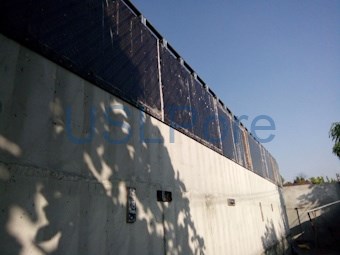

USLPore® can be applied to cast monolithic walls at site. First the whole Light Gauge Steel (LGS) frame structure has to be installed. The frame structure will be covered by a shuttering system. USLPore® will be manufactured and pumped into the wall system afterwards.

The use of USLPore® technology in opposite to other competitor products is leading to an excellent stability and therefore a completely consistent result. There is no variation in density over the whole wall height. With USLPore® using LGS walls up to 3 meters in height can be poured. The density can be varying between 200 kg/m² for non-load bearing walls up to 1400 kg/m³ for load bearing walls.

USLPore® foam concrete for light-gauge steel structures can be produced at different densities. The density below is representing the average applied density of our customers for the respective application.
A higher density is resulting in a higher compressive strength but lower insulating effect.
A lower density is resulting in a lower compressive strength but better insulating effect.
All USLPore® products are fully non-combustible.

  metric imperial
entity value entity value
density [kg/m³] 200-800 [pcf] 12.5-49.9
thermal [W/mK] 0.06 - 0.23 [R-value per in] 0.6-2.4
compression [MPa] 0.35-5.0 [PSI] 50.4-720
×
< >
